Home > Product > FLT Filtration System > content

Product Number:FLT-TD
Product Name:FLT-TD series filtering system
Hits:3875

Product Summary:
Overview of FLT-TD series filtering system

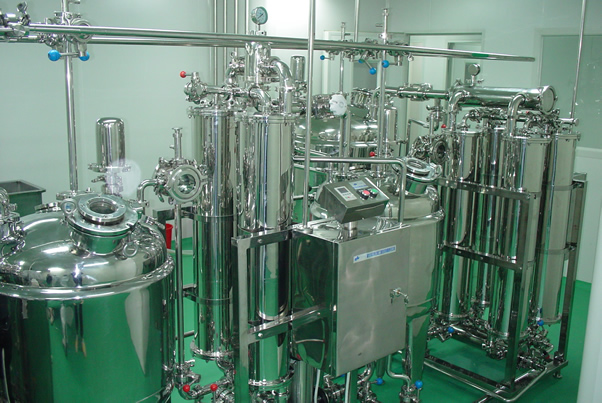

See a larger view

Small molecule peptide-peptide liquid and similar products such as the purification, concentration (such as thymosin, brain protein hydrolysate, various enzyme); liquid antibiotics desalination and purification, concentration; freeze-dried products, dry spray products, Whey, the dehydrated fruit juice, concentrated. The compact system design, remnants of small, high concentration of, to improve efficiency.(0.1μm、0.2μm、0.45μm、0.8μm、1.2μm、2.0μm)

Application
 FLT-TD series filtration system widely used in chemical and biological pharmaceuticals, genetic engineering, natural plant extracts, and other fields to clarify the process to clarify the effect of significant and long service life, easy to clean, tolerance acid-base.

Apply To
Extracts of animal organs clarification, purification (thymosin, transfer factor, brain protein, sheep's placental extract, Lumbrokinase, heparin, chondroitin sulfate), the clarification of the alcohol, purification (lactase, the enzyme papain , Pineapple enzyme); natural plant extracts (Ciwujia, Shuanghuanglian, hawthorn leaves, saffron, erigeron, etc.).

Parameters

Model FLT-TD
Filter Area 1-20 m2
Filter Media
Ceramic membrane
Handling Capacity 50-1000kg/h
PH Range 1-14
Maximum Tolerance Pressure ≤0.3 mpa
Work Pressure ≤0.15 mpa
Temperature 2-80℃
Models Driver 0-50HZ   Arbitrary adjustable
Power 0.75-3.5KW / 50HZ / 380V
Dimension 1000L × 600W × 1700H
